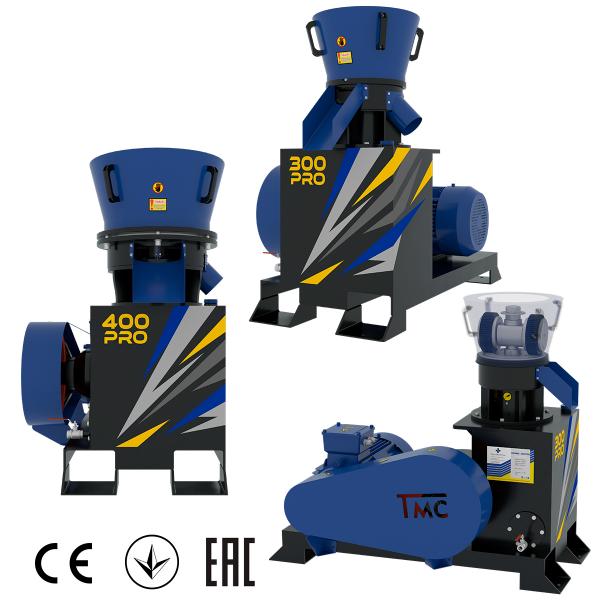

Granulators

GRAND Series

  • Performance: from 100 kg/h to 700 kg/h
  • Power: 4 kW - 37 kW
  • Electricity grid: 220V/380V
  • Raw materials: compound feed, biomass waste and non-feed waste, hay, sawdust, husks

GKM series

  • Performance: from 30 kg/hour to 300 kg/hour
  • Power: 1.5 kW - 11 kW
  • Electricity grid: 220V/380V
  • Raw materials: compound feed, non-feed waste and biomass waste

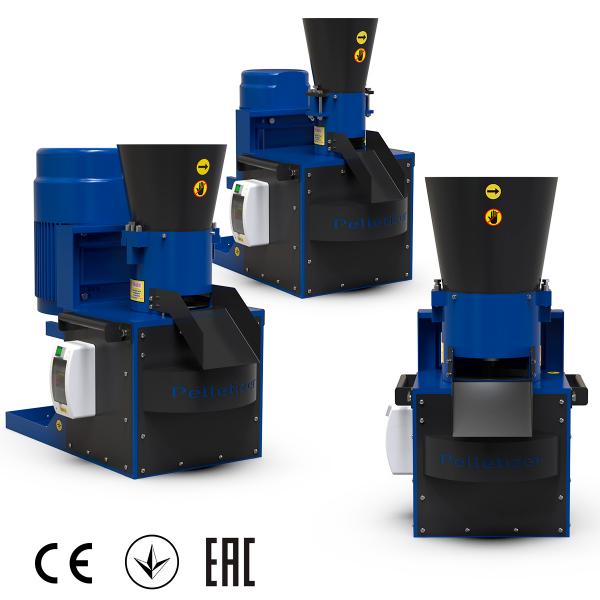

OGP Series

  • Performance: from 100 kg/h to 300 kg/h
  • Power: 4 kW - 11 kW
  • Electricity grid: 220V/380V
  • Raw materials: compound feed, non-feed waste and biomass waste

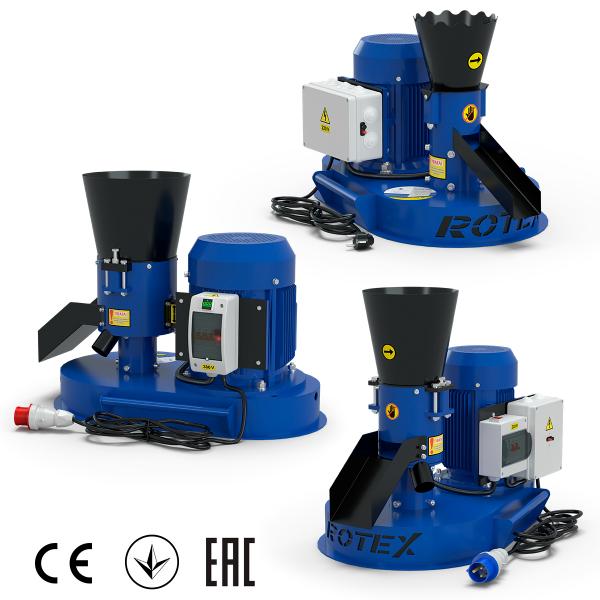

ROTEX Series

  • Performance: from 40 kg/h to 100 kg/h
  • Power: 1,5 kW - 4 kW
  • Electricity grid: 220V/380V
  • Raw materials: grain mixtures and waste, hay, grass, biomass

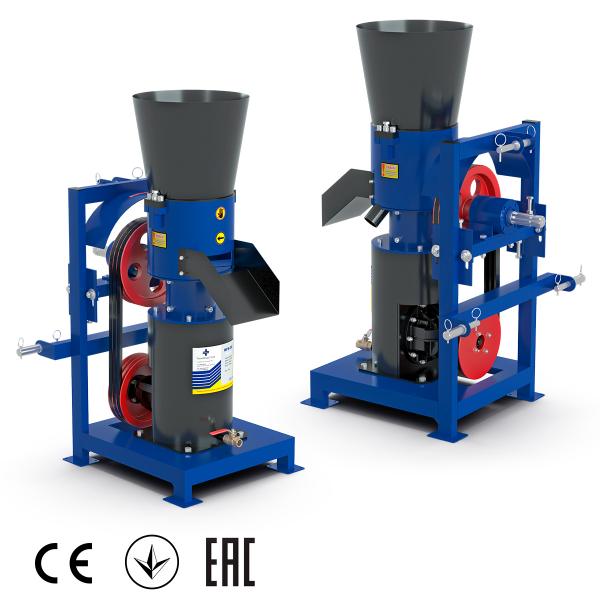

MGK Series

  • Performance: from 40 kg/h to 300 kg/h
  • Power: 1,5 kW - 11 kW
  • Electricity grid: 220V/380V
  • Raw materials: compound feed, biomass waste and non-feed waste, hay, coniferous and deciduous sawdust, husk

FAVORIT Series

  • Performance: from 80 kg/h to 100 kg/h
  • Power: 3 kW - 4 kW
  • Electricity grid: 220V/380V
  • Raw materials: compound feed, biomass waste and non-feed waste

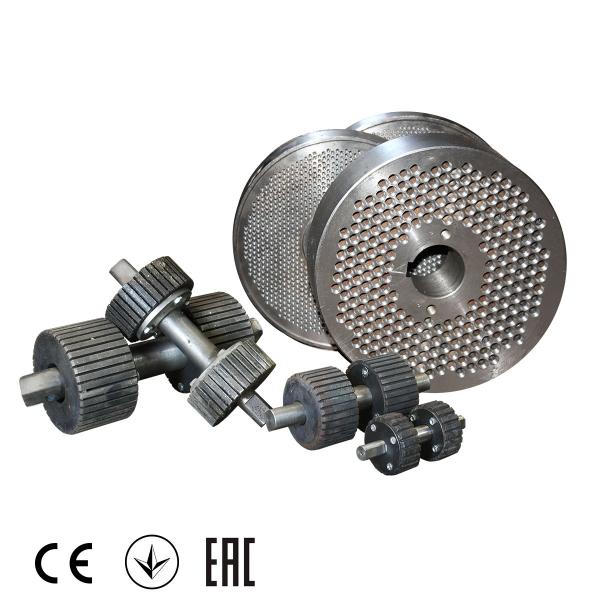

Matrices and rollers

  • Material: High quality alloy steel
  • Diameter: from 100 mm. up to 400 mm.
  • Working holes: from 2 mm. up to 8 mm.

The GKM series consists of pelletizers of 7 models, each of which has a number of its positive qualities and design differences. It is also worth noting that the GKM-100+ model is a multitasking equipment and, in addition to pelletizing, make it possible to grind biomass.

The OGP series includes 3 models: OGP-150, OGP-200, OGP-260. This series is intended primarily for household use. This compact equipment is powerful enough to pelletize not only compound feed, but also hay, straw and some types of sawdust.

The MGK series consists of 4 models. It is distinguished by the presence of a gearbox for lowering revolutions and the ability to use not only an electric motor, but also a gasoline / diesel engine and a power take-off shaft (PTO). More powerful models of this series make it possible to produce both granular compound feed and fuel pellets.

FAVORIT Series: a simple, reliable and economical series of two models. Pelletizers of this series are economical and simple in design. It is these characteristics that make it possible to produce granular compound feed with maximum benefit for yourself.

The ROTEX series was created for the European market and differs not only in modern ergonomic design, but also in new design solutions and is still as reliable as its earlier MGK series.

The GRAND series is the most powerful of all and is designed to granulate almost any biomass suitable for this. Includes 4 models that differ in the installed gearbox, the diameter of the matrix and rollers. It is the pelletizers of this series that are used in the MLG pelletizing lines.
